Guide to Keyboard, Video and Audio connectors
DVI
DVI-I Single Link
See pinning diagram

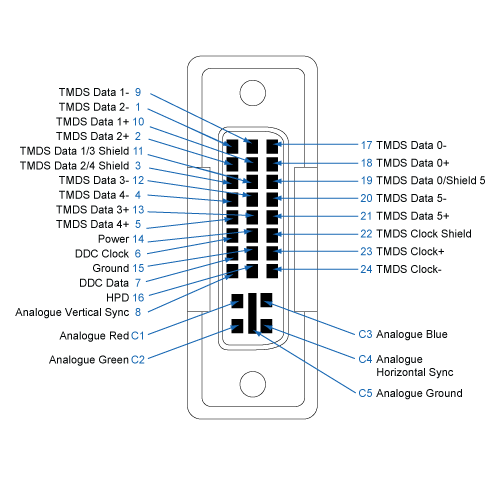

DVI-I Dual Link

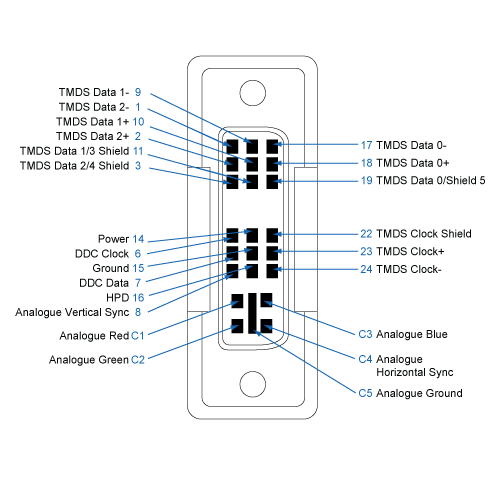

See pinning diagram
DVI-D Single Link

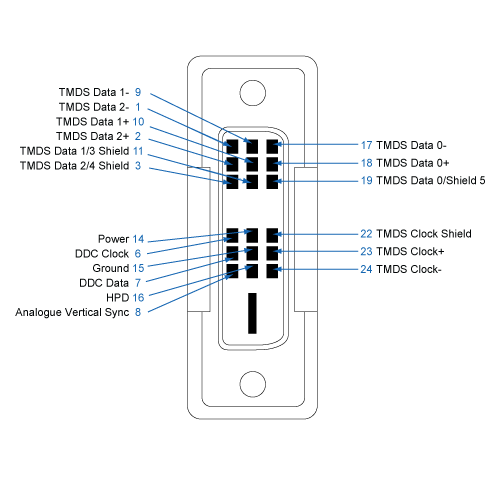

See pinning diagram
DVI-D Dual Link

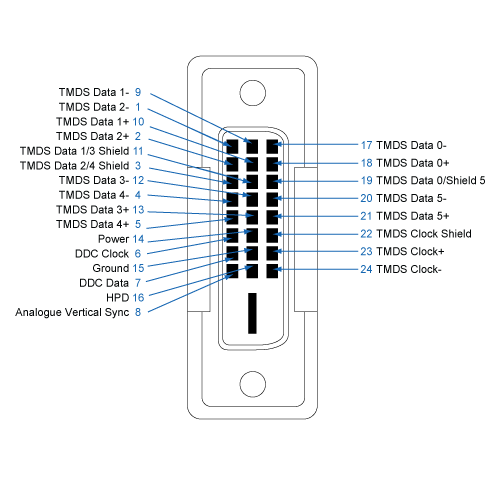

See pinning diagram
DVI-A

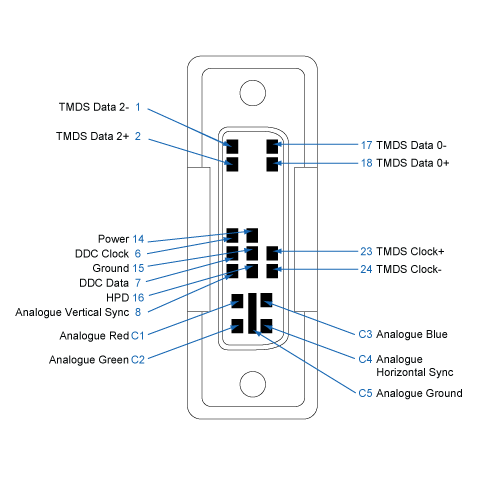

See pinning diagram
DisplayPort
DisplayPort

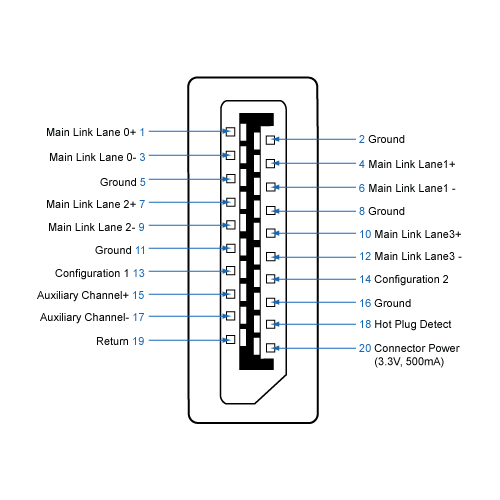

See pinning diagram
Mini DisplayPort

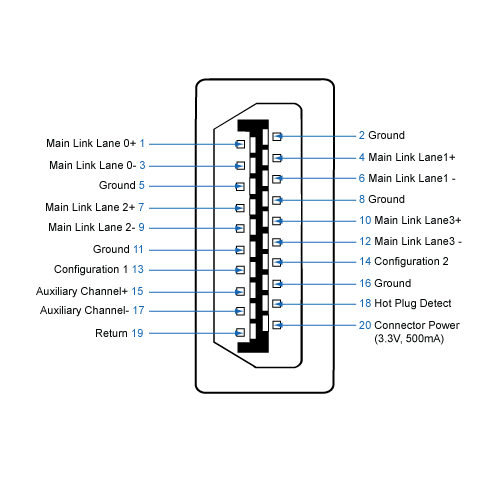

See pinning diagram
HDMI
HDMI

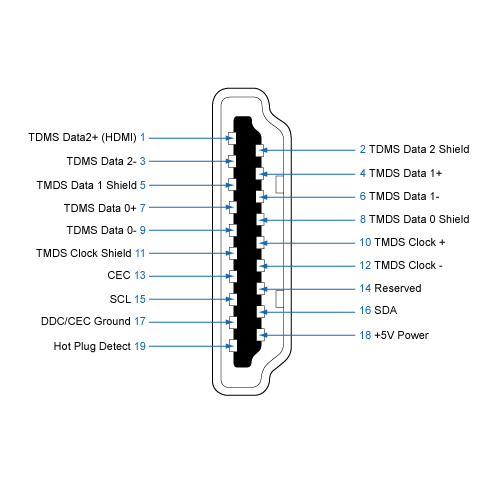

See pinning diagram
Micro HDMI

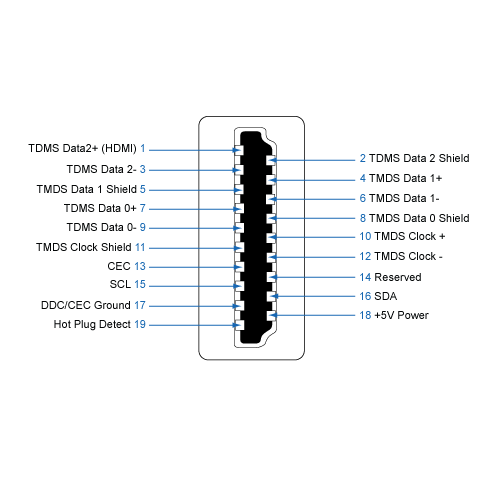

See pinning diagram
Miscellaneous
VGA (HD15)

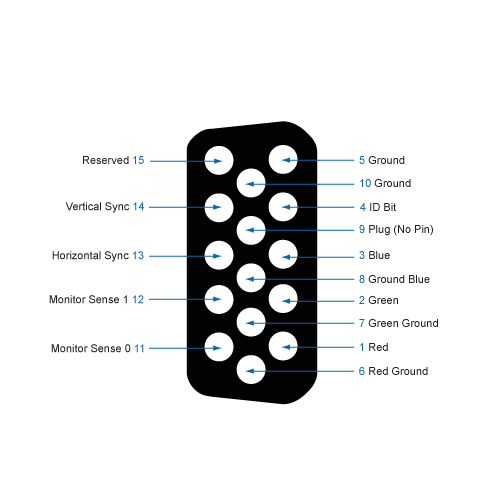

See pinning diagram
S-Video

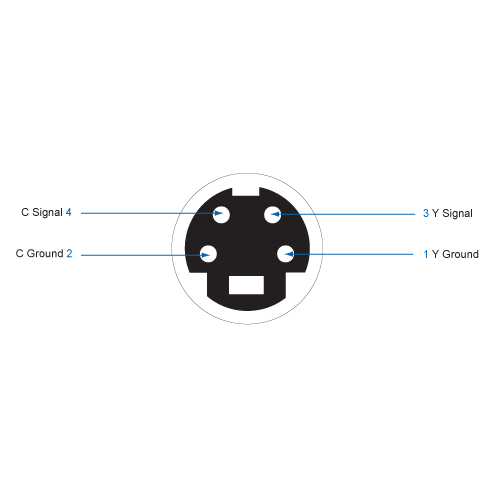

See pinning diagram
TOSLINK
RCA
BNC
F-Type Coax
NOTE: Images are not to scale.
