INDRy II S

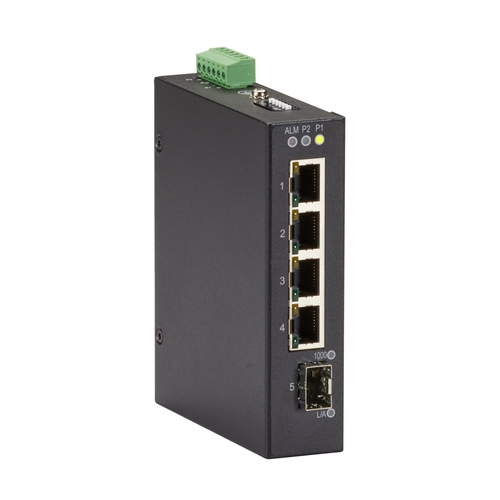

Photo may vary from actual product
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC
LIG401A: -40 to +75° C, (4) 10/100/1000M RJ45 + (1) SFP-slot, 12-58 VDC


INDRy II S


Unmanaged Gigabit Switch for harsh environments


  • Provides four Gigabit 10-/100-/1000M copper ports plus one Multirate SFP Slot.
  • Supports 802.1p and TOS/DS Quality of Service with four queues per port.
  • Allows 9K jumbo frames.
  • Extended operating temperature from -40 to +75° C.
  • Dual power input (12 to 58 VDC) and reverse polarity protection.
  • IP30 rated, fanless design.
  • Meets numerous harsh/industrial standards.
  • Options for DIN rail- and wall- mounting.

  Product       Code   Unit price   Quantity
-40 to +75° C
(4) 10/100/1000M RJ45 + (1) SFP-slot

12-58 VDC
  INDRy II S
INDRy II S
  LIG401A
222,00 €


Accessories

  Product     Code   Unit price   Quantity

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
64,27 €

  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
61,35 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
92,04 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
67,70 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
148,00 €

  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
60,30 €

  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
73,86 €

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
89,37 €

  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
92,04 €

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
99,33 €

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
111,00 €
