AlertWerks gateway - No Sensor, 2-Port

Java™ based Web user interface enables you to access the hub over any IP network, even the Internet.
Sends alerts through SNMP or e-mail.


The brains of your environmental monitoring system—

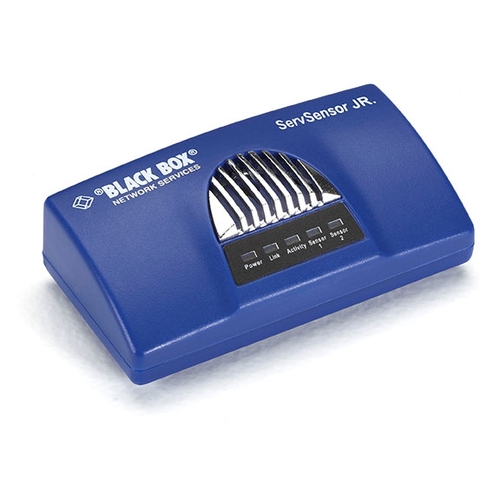

The AlertWerks ServSensor Junior is an affordable way to monitor smaller installations. It acts as the central hub of the AlertWerks environmental monitoring system in limited areas. Connect it to your network, attach AlertWerks sensors, and you're ready to remotely view the status of your data centers and other facilities. Choose monitors for temperature, humidity, or liquids. Or, know when server cabinet doors are open or closed and whether the cabinet is overheating. Use it for remote monitoring and management of devices such as HVAC systems, security equipment, UPSs, generators, and industrial equipment.

The ServSensor Junior features two autosensing RJ-45 ports for connecting any of the AlertWerks Intelligent Sensors.

A clever hub—
The ServSensor Junior is smart. Its embedded Web server enables you to use a standard Web browser to view sensor status over any IP network, even the Internet. Check out the status of your data center from your office, from home, or from the road.

It's fully SNMP manageable, so you can integrate it easily into any SNMP-managed network and monitor it through standard SNMP software such as HP® OpenView®.

The built-in database maintains a time-stamped log of all events, so you can go back to see what happened and when it happened. The integrated data collection and graphing package is especially useful in spotting trends in security, detection of AC power line voltage, measurement of DC voltage, and control relays, and for providing historical information for analysis.

Active alarming—
In addition to enabling you to passively monitor sensors, the AlertWerks ServSensor Junior actively alerts you when sensors exceed limits you determine. It can send alerts via SNMP or by e-mail.

Nice and easy—
The ServSensor Junior installs in minutes. Simply assign an IP address and connect to the embedded Web server. Plug in one or two of our Intelligent Sensors and the ServSensor's autosensing feature will recognize the type and automatically configure it.

Just call to get started—
For help planning your AlertWerks environmental monitoring system, call our FREE Tech Support. Our experts can help you decide how many gateway and sensors you need to meet your monitoring needs.

Configuration— Software utility for IP setup, then over Web browser
Connectors— (2) RJ-45 sensor ports; (1) 10-/100-Mbps Ethernet port
Environmental Temperature— -35 to +80° C (-31 to +176° F)
Humidity— 20 to 80% noncondensing
Indicators— (1) Power On; (1) Link; (1) Activity; (2) Sensor On
Monitoring and Alarms— Via Web browser, e-mail, SNMP trap
Power— 100-240 VAC, 50-60 Hz autosensing external power supply, 5VDC 15W
Security— User/administrator password-protected login
Size— 3.2H x 11.4W x 6.4D cm (1.3"H x 4.5"W x 2.5"D)

EME103A-R3

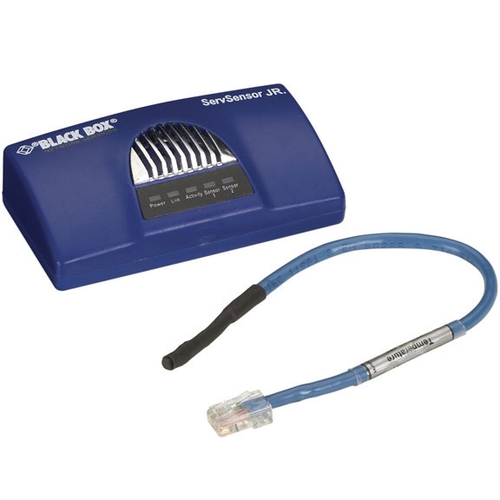

(1) AlertWerks ServSensor Junior Hub
(1) External power supply unit
(1) Installation CD
(1) Temperature Sensor (EME1T1SNMP)
(1) RJ-45 to RJ-45 patch cord, 5-ft. (1.5-m)
