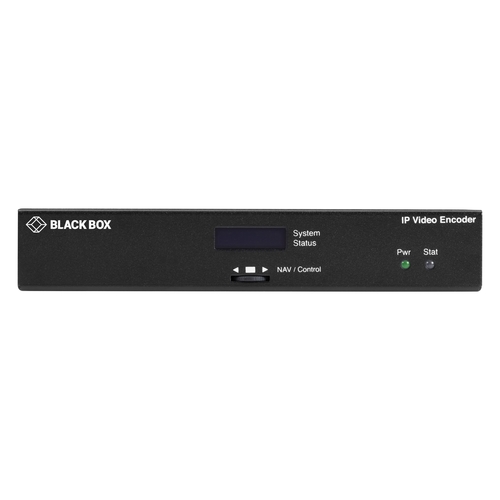

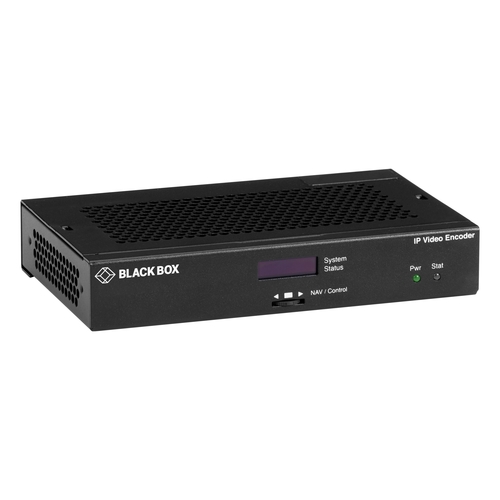

HDMI-over-IP H.264 Encoder

Live Stream Media over IP Extend AV signals as far as your network reaches. This media encoder is a live streaming media encoder that interfaces with HDMI signals for delivering media over IP networks. It features one, two or four HDMI input(s) and one Ethernet output for simplified integration into your AV system.
It can be used with a VS-2001-DEC decoder, Radian Flex Systems or third-party decoder such as a set-top box, a VLC and Kodi media player on PCs to provide complete end-to-end streaming systems.

Standardized Protocols
This encoder complies with standardized and disclosure protocols so that it can work with a VS-2001-DEC decoder or third-party decoders, such as a set-top box, a VLC and Kodi media player on PCs to provide complete end-to-end streaming systems. This allows you to choose the most suitable devices for your AV system.

Advanced Media Codec
The encoder features standards-based H.264/MPEG-4 AVC encoding and MPEG-2 transport streams to transmit video content with visually lossless quality without consuming too much bandwidth. On top of that, the encoder supports AAC audio encoding so a high-quality audio signal can be transmitted using low bandwidth.

Optimized Control Methods
This encoder offers two controlling approaches: web UI and Telnet API. The web UI enables the user to control the system through a common browser. The Telnet API allows the devices to be controlled by a third-party system.

Approvals — RoHS2, CE, FCC pert 15, UL
Compression — H.264 Standard-based H.264/MPEG-4 AVC;
Video Standard — HDMI 1.2 to 1.4 with HDCP 2.2
Video —
Input Resolution:
@60Hz
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1200, 720 x 480 (480 p), 720 x 576 (576p), 1280 x 720 (720p60), 1920 x 1080 (1080p60), 1920 x 1200,
@30Hz
1280 x 720 (720p30),
1920 x 1080 (1080p30)
@other
1280 x 720 (720p50)
1920 x 1080(1080p25),
1920 x 1080 (1080p50),
1920 x 1080 (1080p24)
Output Resolution:
@60Hz
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1200, 720 x 480 (480 p), 720 x 576 (576p), 1280 x 720 (720p60), 1920 x 1080 (1080p60), 1920 x 1200
@30Hz
1280 x 720 (720p30), 1920 x 1080 (1080p30), 3840 x 2160
@ other
1280 x 7206 (720p50), 1920 x 1080 (1080p24), 1920 x 1080 (1080p25), 1920 x 10806 (1080p50)
Input Video Signal: 0.5 –1.2 V p-p
Input DDC Signal: 5 V p-p (TTL)
Video Impedance: 100 ohms
Video Encoding Bit Rate: 2 Mbps to 30 Mbps (configurable)
Audio —
RAW PCM data, 48 kHz sps
Encoding: LPCM, AAC;
Sampling Rate: 48 kHz;
Bitrate: 1.6 Mbps (LPCM), < or = 240 kbps (AAC)
Connectors —

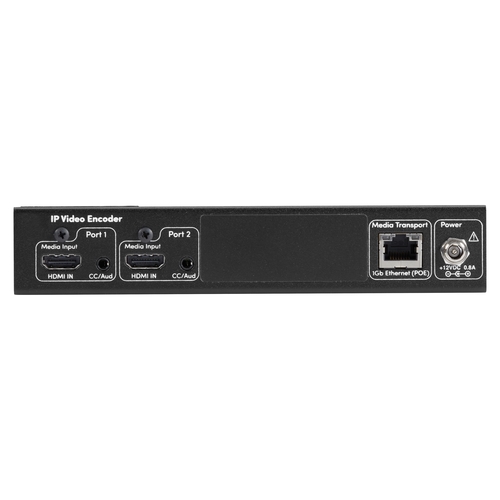

Video Input: (2) or (4) HDMI
Audio Input: (4) 3.5-mm 3-pin Phoenix connector (analog audio), or HDMI Input (stereo)
Output: (1) RJ-45, 10/100/1000BASE-T Ethernet port;
Networking —
LAN Interface: 10/100/1000Base-T
IP Address: DHCP/Static/Auto IP
Network Switch: Multicast, IGMP V2
Latency: about 90 ms in low delay mode or 350 ms in high quality mode, in average, end to end from Encoder to Decoder
User Controls —
Web UI;
Telnet CLI
Power — PoE or 12V DC
Power Consumption:
VS-2002-ENC/VS-2004-ENC: 12W max.
Power Output: 12VDC 1A or PoE
ESD Protection: Human body model: ±8 kV (air-gap discharge, ±4 kV (contact discharge)
Environmental —
Humidity (Operating):10% to 90%, non-condensing
Operating Humidity: 10% - 90%, non-condensing
Operating Temperature: 0 to + 45°C (32 to + 113 °F)
Storage Temperature: 20 to +70°C (-4 to + 158 °F)
Weight — 0.8kg (1.7637 lbs)
Size — VS-2002-ENC/VS-2004-ENC: 112 x 180 x 34 mm

(1) HDMI over IP H.264 Encoder ( V S-2001-ENC)
(1) Power Adapter (12 VDC , 1A)
(2) Phoenix Connectors (male, 3.5-mm 3-pin)
(2) Rackmount Ears
