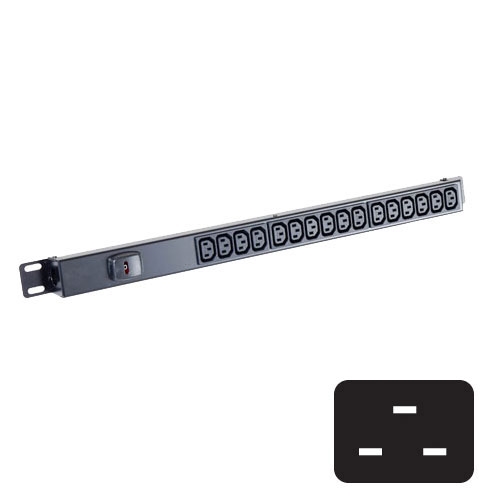

The Black Box range of C13 power strips provide a cost effective method for providing power directly into cabinets and racks. All the PDUs in this range are supplied with a 3m mains lead, terminated in a standard C20 plug. There are two versions, horizontal PDUs which will take up either front or rear cabinet space (measured in "U"), or vertical PDUs which are typically mounted to one side at the front or rear of the cabinet.
Built from powder coated, mild steel, all the standard C13 PDUs come complete with fixing brackets built-in. The standard range also come with a suitable on/off switch complete with a neon light to show the status of the switch (Except BBIEC16HC20 which is unswitched due to lack of space). These PDUs also include a built-in external metal earth stud to correctly bond the units to cabinets.
Dimensions —
Horizontal PDUs:
BBIEC6H: 485 x 44 x 50 mm
BBIEC8H: 485 x 44 x 50 mm
BBIEC10H: 410 485 x 44 x 50 mm
BBIEC12H: 485 x 44 x 50 mm
BBIEC16H : 485 x 44 x 50 mm
Vertical PDUs:
BBIEC6V: 421 x 44 x 50 mm
BBIEC8V : 72 x 44 x 50 mm
BBIEC10V: 521 x 44 x 50 mm
BBIEC12V: 572 x 44 x 50 mm
BBIEC16V: 671 x 44 x 50 mm
BBIEC20V: 721 x 44 x 50 mm
BBIEC24V: 848 x 44 x 50 mm
