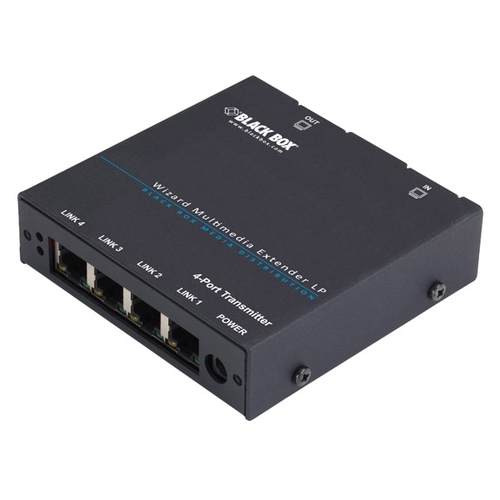

Simplify multiscreen HD video extension with this CATx-based VGA distribution solution. The Wizard Multimedia Extender LP 4-Port Transmitter extends analog video as far as 152.4 m using solid-conductor CATx cable.
Outstanding Video Quality
Used with separately sold Wizard Multimedia Extender LP Receivers (AVU4001A-RX), the transmitter enables you to broadcast Full HD 1080p video to four screens in four locations over CATx wiring already installed in your building. It broadcasts maximum resolutions at maximum distances—going farther than what’s ordinarily possible or practical with standard VGA cabling runs.
Inline powered receivers
Even better, the receivers are line powered from the transmitter end over the CATx cable to the receivers, so power isn’t required at the remote end. This feature makes the extender ideal for rooms where you’re short on outlets, as well as reducing the number of cords around or behind screens. The receiver also features video adjustment to control picture sharpness on your connected video screen. Just use a screwdriver to adjust the sharpness of the video image.
Serial control
In addition, the Wizard Multimedia Extender LP 4-Port Transmitter has a serial port that you use to switch remote video on and off. Doing this forces most VGA screens to go into standby mode, which, in turn, can help you save in utility costs and preserve the lives of your displays.
Local Monitoring and Cascading Port

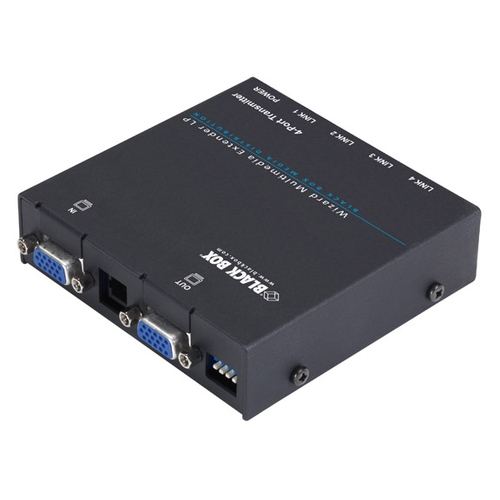

You can also attach a screen locally via the transmitter’s feedthrough VGA port. Or use the feedthrough port to cascade to another Wizard Multimedia Extender LP 4-Port Transmitter—great in applications where you have more than four displays that you want to reach with your host system. You can cascade another transmitter to support up to eight screens.
Applications
The extender/broadcaster is great for:
- Control centers
- Corporate signage networks
- Healthcare and medical imaging
- Classroom video distribution
- Broadcast/AV production studios
- Retail store applications
- Banking and financial video
- Military and government deployments
