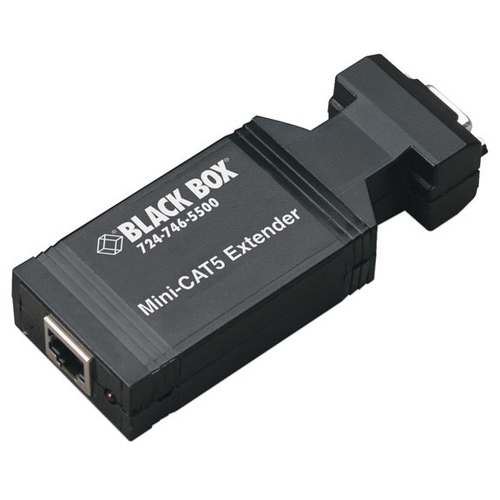

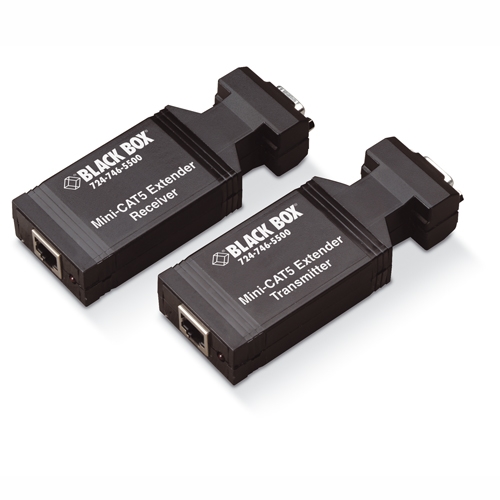

Mini Cat5 Extender System

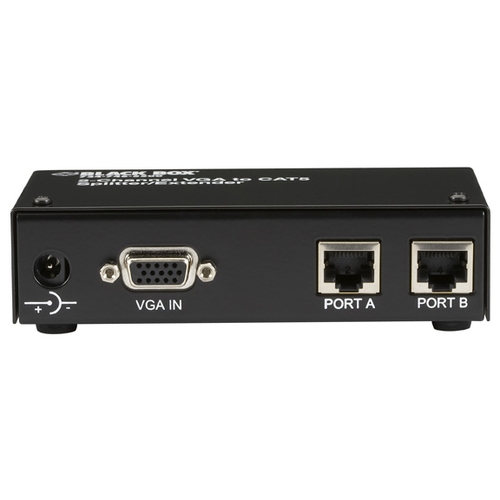

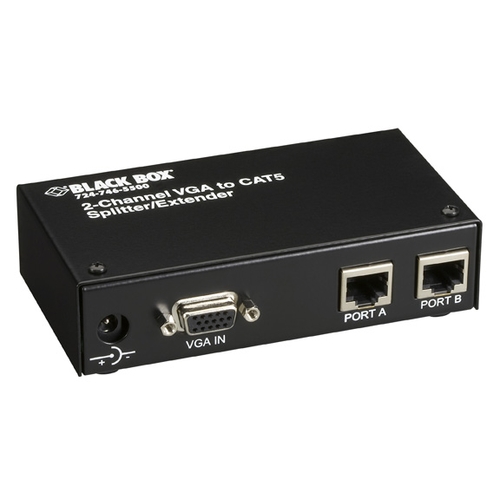

Say goodbye to bulky, expensive, and difficult-to-terminate VGA cable. Mini CAT5 Extenders and Mini CAT5 Splitter/Extenders enable you to place video displays such as monitors or LCD screens where you need them to display information such as schedules, menus, or advertising. They are easy to install. Just plug a standard CAT5 cable between the two units.

A pair of extenders requires only a single power supply, which can be installed at either end of the link.

The extender/splitter requires a power supply at the transmitter end only to power a link to all connected receivers. These devices support a distance of 90m at resolutions of 1600 x 1200.

Distance (Maximum) — 152 m at 1280 x 1024 Resolution;greater distances yield lower resolutions
Resolution (Maximum) — 1600 x 1200
Connectors — Both: (1) HD15 F on transmitter and receiver unit for video out/in; (1) shielded RJ-45;
AC504A-CP has (2) 1.5-m cables with (1) HD15 M to (3) RCA M
Power — 100 — 240 VAC, 50- 60 Hz, autosensing
Size — Each unit: 2H x 4.3W x 11.4D cm
