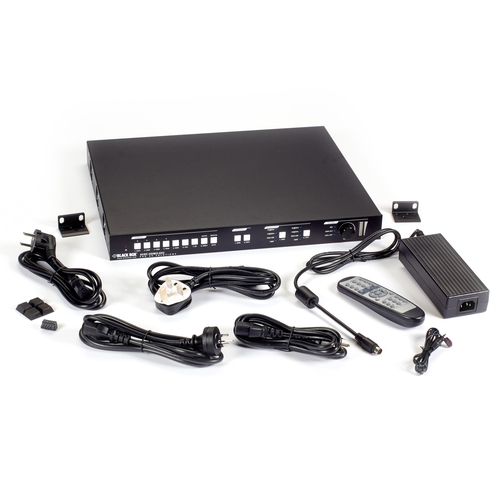

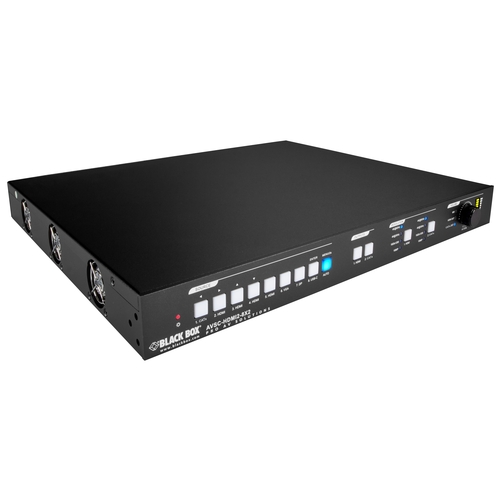

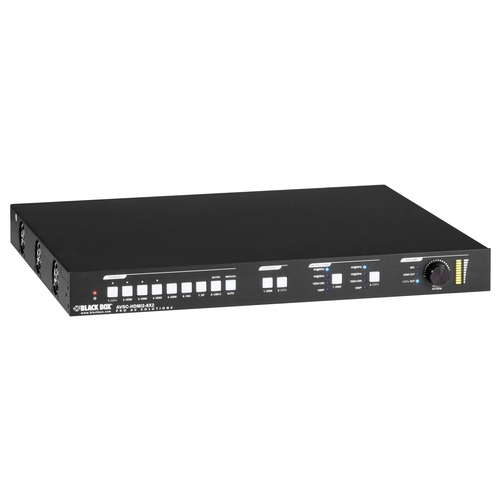

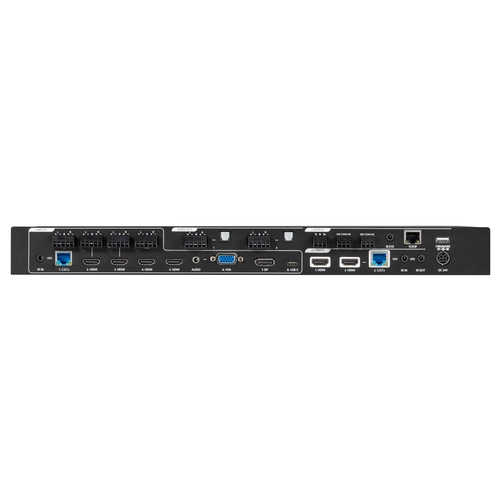

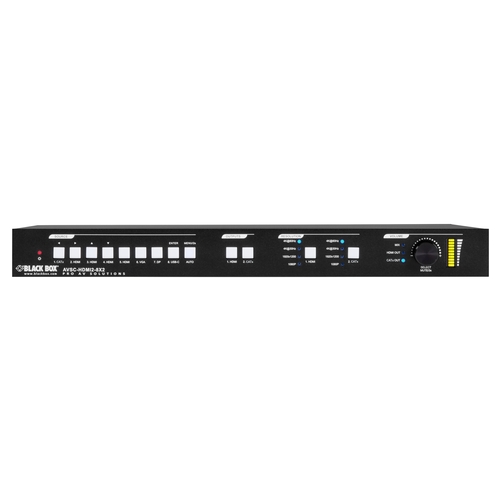

8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
Photo may vary from actual product
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2


8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0


Simplifies meeting room and presentation space system integration with (automated) video switching


  • Share multiple sources with two displays.
  • HDMI 2.0 and HDCP 2.2 compliant.
  • The video resolution can be up to 4K @ 60 Hz 4:4:4.
  • Supports video resolution down-scaling and up-scaling, 1080p, 1920 x 1200p, 4K @ 30 Hz, 4K @ 60 Hz can be selected for HDMI and CATx outputs.
  • Supports automatic switching.
  • Features a mirrored HDMI output for CATx output.
  • Visually lossless video de-compression and compression for HDMI signals transmission up to 40m at 4K and 70m at 1080p on CATx input and output.
  • CATx input and output support 24V PoC (Power over CAT6).
  • External balanced audio inputs can be embedded in one CATx input and two HDMI video inputs respectively.
  • Provides two groups of audio outputs (balanced audio and digital SPDIF audio) for audio de-embedding.
  • Supports MIX audio input and its volume control.
  • Supports HDMI output, CATx output audio control.
  • Multiple control options: Controllable via RS-232 local and pass-through, IR local and pass-through, TCP/IP, relay, CEC and on OSD.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
HDMI 2.0, VGA, DP, USB-C, CATx

8x2
  8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
  AVSC-HDMI2-8X2
3 230,00 €


Accessories

  Product     Code   Unit price   Quantity

  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 1m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-001M
9,77 €

  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 2m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-002M
12,23 €

  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 3m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-003M
14,18 €

  HDMI 2.0 Extender over CATx - (1) HDMI, 70m, Kit
HDMI 2.0 Extender over CATx
  AVX-HDMI2-HDB-R2
658,00 €
