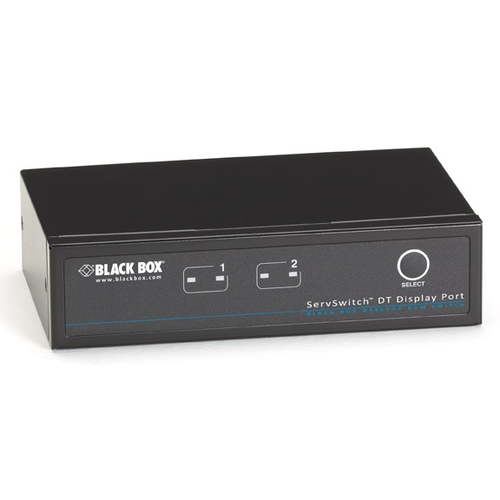

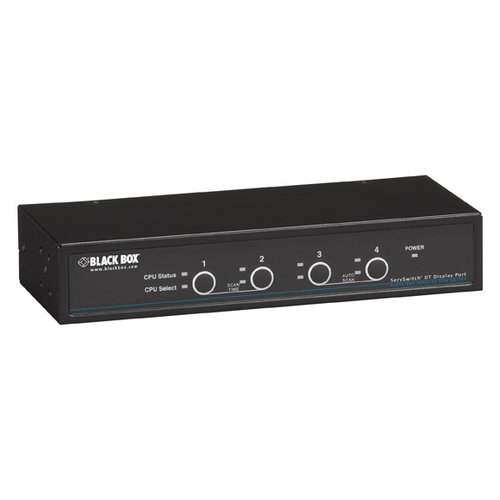

This newest enlargement of the Black Box ServSwitch DT series supports DisplayPort connections, a new video standard with high resolution video up to UXGA (1600 x 1200), full HD (1920 x 1080), WUXA (1920 x 1200) WQXGA (2560 x 1600, dual-link). The ServSwitch DT Display Port combines Display Port, USB keyboard/mouse switching and USB peripheral sharing in one device. Two models are available: 2-port (KV9702A) and 4-port (KV9704A). You can easily operate up to four PCs, G3/G4 Macintosh® computers, or Mac® Pros from a single USB keyboard, USB mouse, and monitor, saving you space, time, equipment, and money.
Its peripheral sharing function enables you to share more USB peripherals among all computers. The units also support bidirectional audio. Users can switch among up to two or four KVM sources and control the systems using a USB keyboard and mouse, USB peripherals, and bidirectional audio, and view them with a DisplayPort supported monitor. A unique tracking system enables the USB or audio devices to operate independently.
Installation is as easy as connecting USB A-B cables between computers and the ServSwitch DT DisplayPort KVM. To select a port, just press the front-panel button(s). The built-in USB hub ensures smooth switching from one computer to the other. It reduces redundant cables and encourages a neat and tidy working environment.
System Requirements
Console Side:
• (1) DisplayPort monitor
• (1) USB keyboard
• (1) USB mouse
• (1) microphone and speaker (optional)
Computer Side:
• (1) USB-enabled computer with DisplayPort video support
Cables:
Each computer can interface with the KVM switch with:
• (1) DisplayPort video cable
• (1) USB Type A-B cable
• (1) Optional audio cable
Operating Systems — Windows® and Mac®
Control— KV9702A: (1) front-panel push button; KV9704A: (4) front-panel push buttons plus Hotykey functions
Automatic Scan Interval — 3, 8, 15, and 30 seconds
Cable Length (Maximum) — 3 m for USB
Resolution (Maximum) — UXGA (1600 x 1200), WUXGA: (1920 x 1200), Full HD (1920 x 1080p), WQXGA (2560 x 1600)
DDC2B Support — Yes

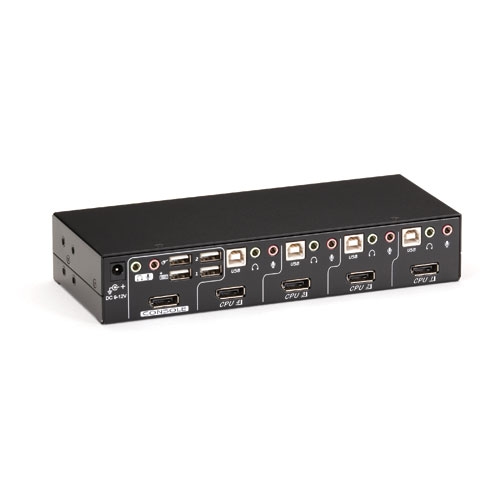

Connectors —
Console: (1) DisplayPort F; (4) USB Type A F ([1] for keyboard, [1] for mouse, [2] for USB 2.0 devices);
CPU: (2) or (4) DisplayPort F; (2) or (4) USB Type B F; (4) or (8) 3.5mm female for audio and micro;
Power: (1) 2.5mm barrel connector for input, 9–12 VDC
Indicators — (4) or (8) LEDs: Computer Online, Computer Selected;
Power — External in-line power supply ITE, 9–12 V
Size — KV9702A: 3.9H x 16.2W x 10D cm; KV9704A: 4.3H x 22.1W x 12.9D cm
Weight — KV9702A: 0.6 kg; KV9704A: 0.7 kg
NOTE 1: DisplayPort video card drivers need to be installed correctly on the target computers.
NOTE 2: Use only for DisplayPort video cards and monitors. Not designed to be used with any HDMI/DVI interfaces, as this technology does not support DP++.
TAA compliant — YES
(1) 2- or 4-port KVM switch,
(4) rubber feet,
(1) external power supply,
manual
|
