EC VGA KVM Switch, PS2/USB-User &-CPUs, 4-/8-/16-Port

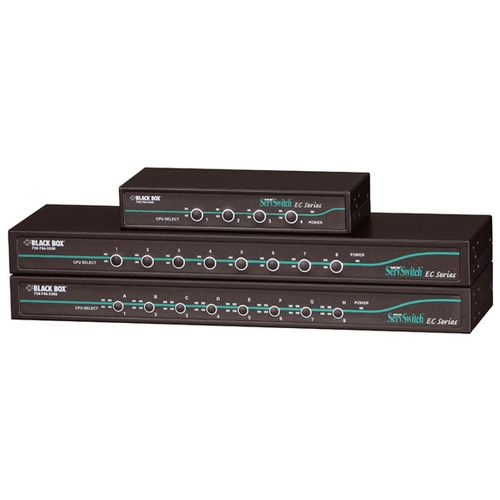

Photo may vary from actual product


EC VGA KVM Switch, PS2/USB-User &-CPUs, 4-/8-/16-Port


Single user rackmount KVM switches for controlling 4x, 8x and 16x CPUs offering connectivity for PS2/USB/VGA user and CPUs.


  • Switch between a number of PS/2 or USB servers from a single PS/2 console (PS/2 keyboard, PS/2 mouse, and monitor) or a single USB console (USB keyboard, USB mouse, and monitor).
  • To choose the console mode, just slide a switch on the back panel.
  • Available in three models.
  • Cascadable for adding up to 136 server connections.
  • Compact and just 1U high, so it's ideal for use where space is at a premium. The 8- and 16-port models include rackmounting brackets.
  • Switch manually on the unit, via an on-screen interface, with hotkeys, or automatically by activating the AutoScan function.
  • Supports Microsoft® IntelliMouse®.

Share |
  Product       Code   Unit price   Quantity
Single VGA
USB HID

4 port
  ServSwitch EC USB+
ServSwitch EC USB+
  KV9204A
193,00 €

USB HID, PS/2

8 port
  ServSwitch EC USB+
ServSwitch EC USB+
  KV9208A
384,00 €


16 port
  ServSwitch EC USB+
ServSwitch EC USB+
  KV9216A
610,00 €

Note: The KV9204 does not support PS/2 consoles.

Accessories

  Product     Code   Unit price   Quantity

  ServSwitch DT/EC Cable - VGA, PS/2, 1.8m
ServSwitch DT/EC Cable
  EHN70001-0006
7,94 €

  ServSwitch DT/EC Cable - VGA, PS/2, 3m
ServSwitch DT/EC Cable
  EHN70001-0010
10,65 €

  ServSwitch EC Cable - VGA, PS/2, 4.5m
ServSwitch EC Cable
  EHN9000P-0015
15,97 €

  ServSwitch EC Cable - VGA, PS/2, 9.1m
ServSwitch EC Cable
  EHN9000P-0030
25,87 €

  ServSwitch EC USB Server Cable - VGA, USB, 1.8m
ServSwitch EC USB Server Cable
  EHN9000U-0006
10,64 €

  ServSwitch EC USB Server Cable - VGA, USB, 3m
ServSwitch EC USB Server Cable
  EHN9000U-0010
14,42 €

  ServSwitch EC USB Server Cable - VGA, USB, 4.5m
ServSwitch EC USB Server Cable
  EHN9000U-0015
19,49 €

  Serial Access Unit
Serial Access Unit
  KV9-SRL
159,00 €
