GigaTrue® 3 CAT6A 650-MHz Ethernet Patch Cable with Lockable Connectors – Snagless, Shielded (S/FTP)

Black Box GigaTrue 3 Premium CAT6A shielded patch cables with locking connectors give you the ability to lock down critical network ports, offering three levels of security to choose from:

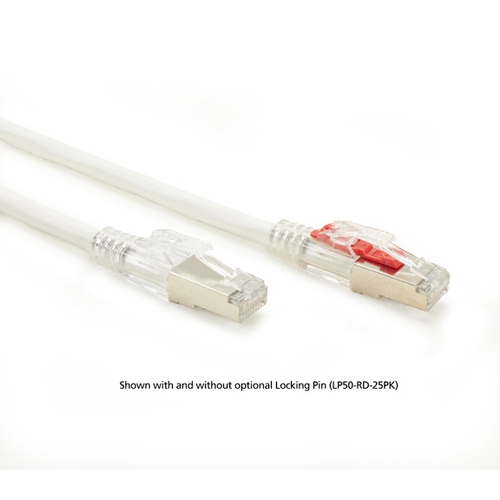

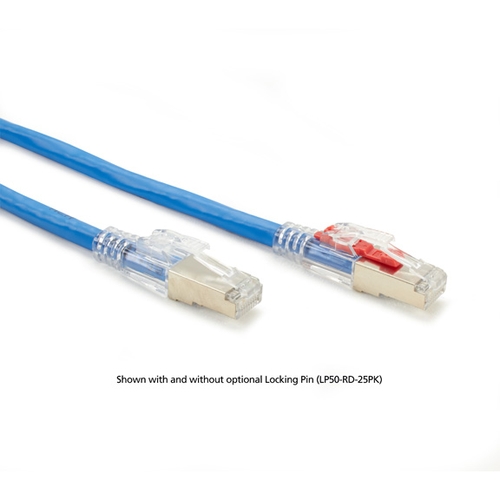

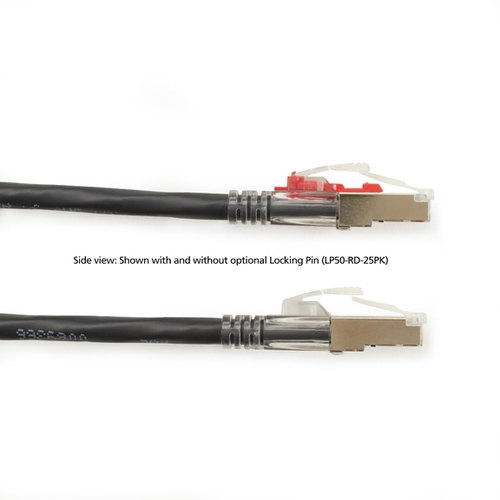

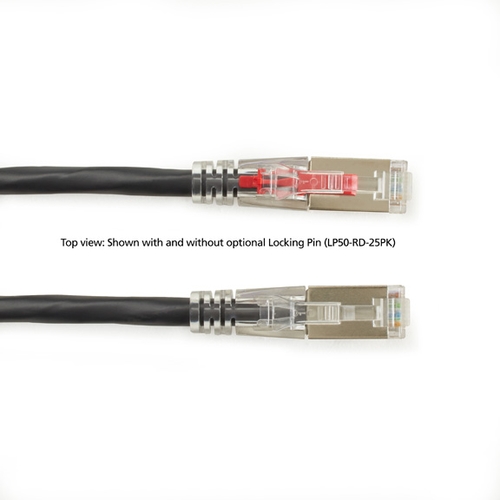

Red Pin: Locked—
Prevent unauthorized access and tampering of mission-critical and publicly accessible ports in government offices, lobbies, retail establishments and more. To lock down a port, a Red Locking pin inserts into the patented LockPORT boot of the cable. In order for the pin to be removed and the cable disconnected from its port, it must be released with a Removal Tool (KEY-CL). The Red Locking pins can be purchased in packs of 10 (LP50-RD-10PAK) and 25 (LP50-RD-25PAK).

Green Pin: Secured—
Prevent accidental disconnects in the office, manufacturing and industrial applications, and more. To secure a port, a Green Locking pin inserts into the cable’s LockPORT boot. This pin features butterfly tabs that can be pressed with fingers to release it, and does not require a Removal Tool. The Green Locking pins can be purchased in packs of 10 (LP40-GN-10PAK) and 25 (LP40-GN-25PAK).

No Pin: Protected—
Use without locking pins, the same as you would an ordinary snagless connector. Even without the pins, the rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison with standard connectors.

Premium performance—
On top of their secure, lockable design, Black Box GigaTrue 3 Premium CAT6A S/FTP patch cables are constructed to meet or exceed ANSI/TIA industry standards, while protecting against EMI/RFI interference that can distort or destroy your data. Tested to 650-MHz and 10-Gbps performance, these cables ensure transmission of your voice, data, audio/video and/or PoE signals in bandwidth intensive 10G networking applications. They feature plugs with 50-micron gold-plated contacts for superior conductivity, and have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform.

Approvals: RoHS, CE, UL/cUL
Standards: TIA/EIA-568-C.2 Category 6A
Connector 1: RJ45 Male
Connector 2: RJ45 Male
Connector Plating: 50u
Cable Jacket Type: CM PVC
Cable Type: Stranded
Conductor Gauge: 26 AWG
Shielded: S/FTP
Snagless Connector: Yes
Frequency: Up to 650 MHz
